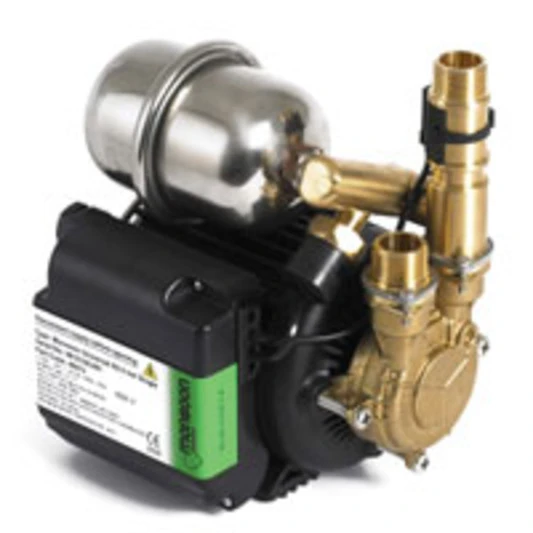

Stuart Turner Monsoon Universal U3.0 Bar Single – 46413

Original price was: £360.00.Current price is: £96.99.

SKU: C2HVD 46413 Category: Pumps

Quick responses, top-notch service.

Quality products, fair prices.

Service that stands out, online and always timely.

7-Day Returns, 100% Quality

Product Description

Negative or Positive Head

3.0 bar Single

2 Year Guarantee extendable to 3 years

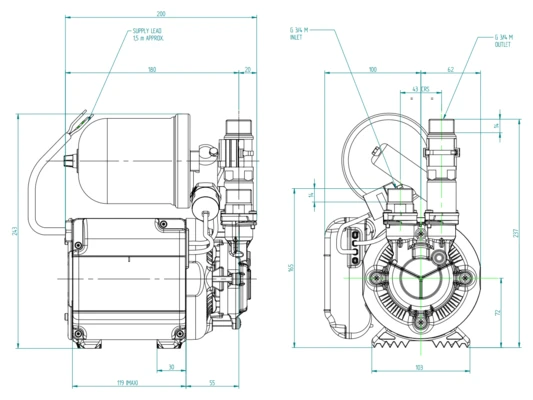

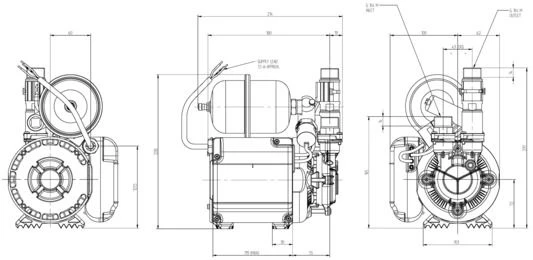

Product Specification

Depth: 162mm
Guarantee: 2 Years
Head Type: Negative Head
Height: 228mm
Impeller Type: Regenerative
Max Pressure Rating: 3.0 Bar
Pump Type: Single Impeller
Width: 214mm

Universal single pumps can be used in pairs to boost vented
systems to pump hot and cold water supplies independently, or as a
single pump to boost a water supply as required.

Ideal for boosting hot water service to a common mixer where
the cold supply is mains fed.
Ideal for boosting hot and cold supplies separately.
Suitable for increasing water pressure to a combi boiler via a
break tank.

Technical Specification

The Pump
Inlet strainer
Stuart hard face mechanical seal
Flow switch sensitivity	approx. 0.6 l/min
Pressure switch
Max. inlet head	12 metres
Plumbing connection	G ¾ ” male
Flexible hose	G ¾ ” female x 22 mm push-in c/w isolating valves x 305 mm long
Anti vibration feet
WRAS approved
The Motor
Power Supply	230/1/50
Enclosure rating	IPX4
Motor	Induction type, permanent capacitor, auto resetting protective thermotrip
Power consumption	280 Watts
Full load	1.7 Amps
Fuse rating	5 Amps
Pre wired
Rating	Continuous (S1) @ 9 l/min and above
Gross weight (packed)	6.9 Kg
2 Year Guarantee	Can be extended free to 3 years -United Kingdom only
Part Number:	46413 (United Kingdon specification only)
