Mira Vision Dual Pumped Digital Mixer Shower Ceiling Fed – 1.1797.102

Welcome to the future of showering. The Mira Vision Dual, with wireless digital technology, offers you ultimate control. With two shower heads that can work together it’s a sensational showering experience. Ceiling fed, pumped option.

Temperature Control

• Thermostatic Technology
• Automatic Shutdown: Yes
• Maximum temperature setting for increased safety

Installation – Units & Fittings

• Water Entry Points: Top – Ceiling Fed
• Inlet Connections: 15mm Push Fit (supplied) or 15mm compression

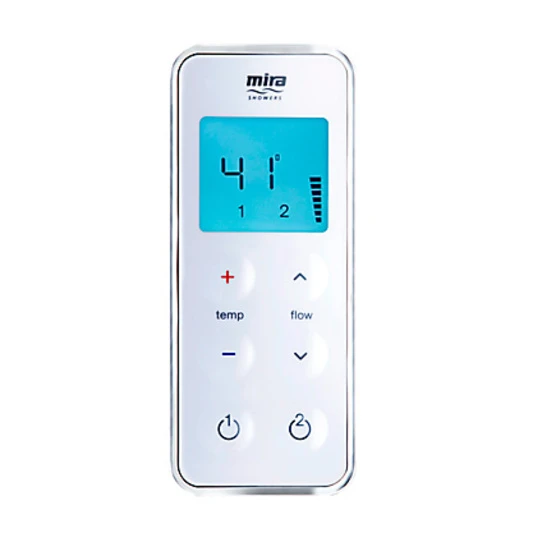

• Data Connection to digital mixer: Wireless

Installation – Digital Mixer

• Inlet connections: 15mm Push Fit (Supplied) or 15mm Compression
• Outlet connection: 15mm Push Fit (Supplied)
• Data connection to control unit & fittings: Wireless
• Supply Voltage: 230v + 10%
• Supply Rating: 3 amp

Supply Conditions

• Cold Water range 1°C-20°C
• Hot Water range 55°C-65°C
• Minimum maintained pressure: Pumped: 0.01 bar (10cm head)
• Maximum maintained pressure: Pumped: 1.0 bar (10 meter head)
• Maximum static pressure: Pumped: 10.0 bar (10 metre head)

Benefits for your customer

• Flow rate: Up to 16 l/min at 1 Bar
• Separate temperature and flow controls
• Programmable functions

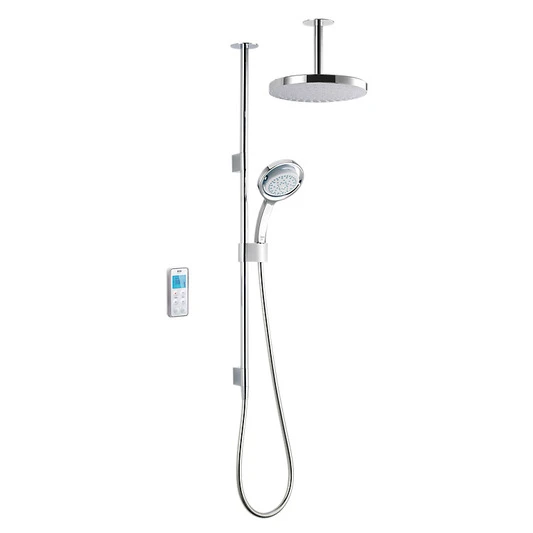

• 250mm deluge head and Mira 360 showerhead
• Approvals – WARS & KIWA UK Approved
