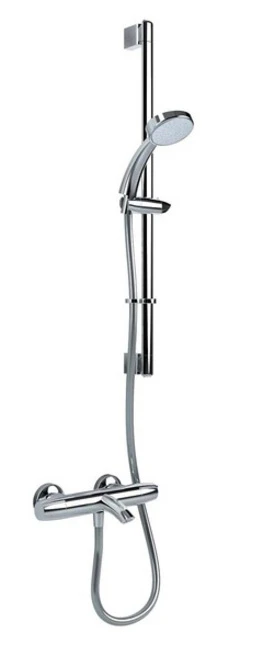

Inta Sulis Thermostatic Bath Shower Mixer (Wall Mounted)

Valve Only – Does not include rail kit as pictured

• Colour: Chrome
• Depth: 180mm
• Fitment Style: Exposed
• Guarantee: 5 Years
• Inlet Connection: G ¾” F BSP
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 271mm

The Sulis range from Inta will add a touch of elegance to all bathrooms in your home. Gentle curves and sleek lines are the defining features. Behind the looks is the thermostatic reliability on which Inta has built its reputation. With concealed, exposed, over the bath and basin mixer options the Sulis can protect those in a vulnerable position wherever they are installed – beautifully.

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of ± 2°C

Fail safe protection on both the hot and cold supplies

Operating pressure range of 0.2 to 5 bar WRAS and TMV2 approved

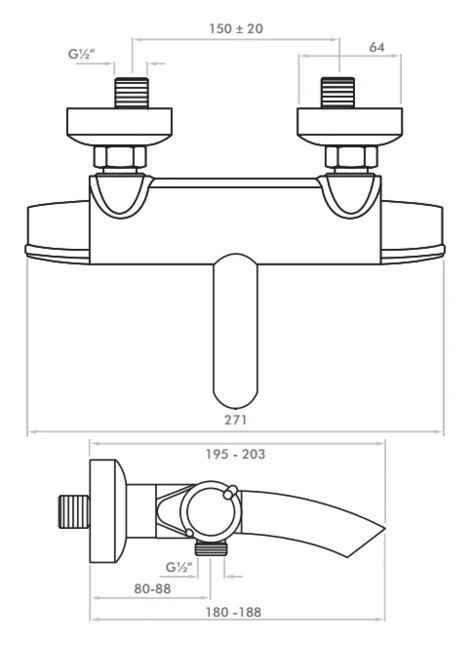

Technical Specifications

Factory pre set temperature: 38°C with max temp stop
Inlet connections: G ¾” F BSP (valve body)
Min inlet pressure dynamic: 0.2 bar
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: G ½” BSP
System installation: Unvented, pressurised, gravity and combi boilers
